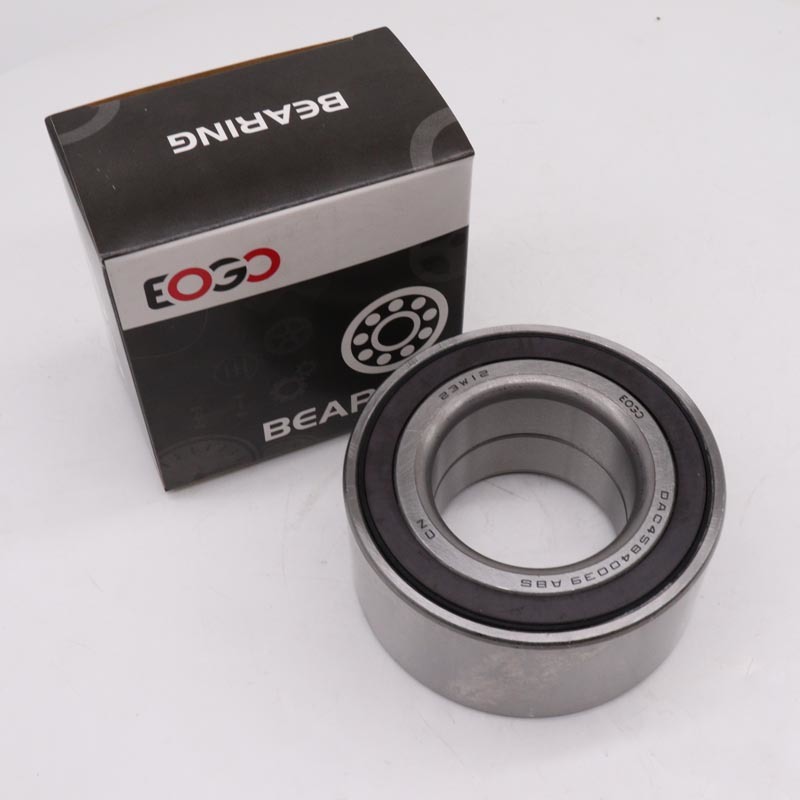

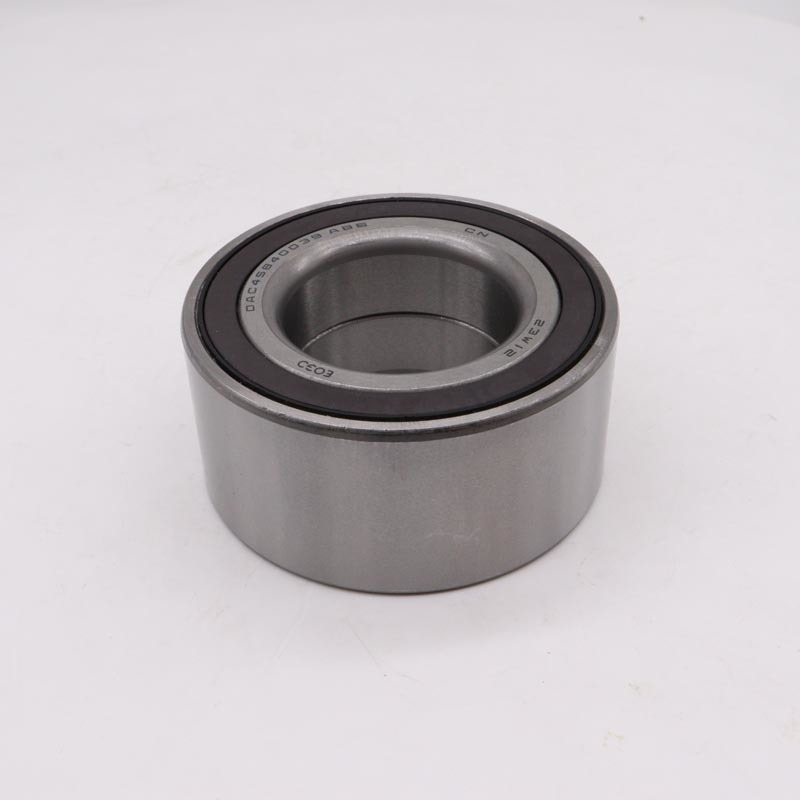

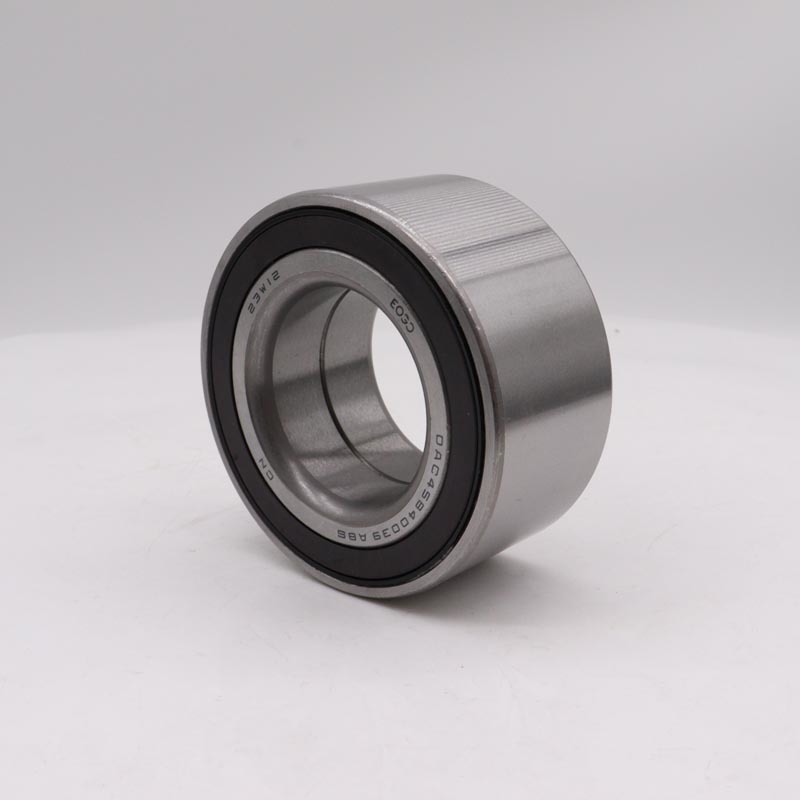

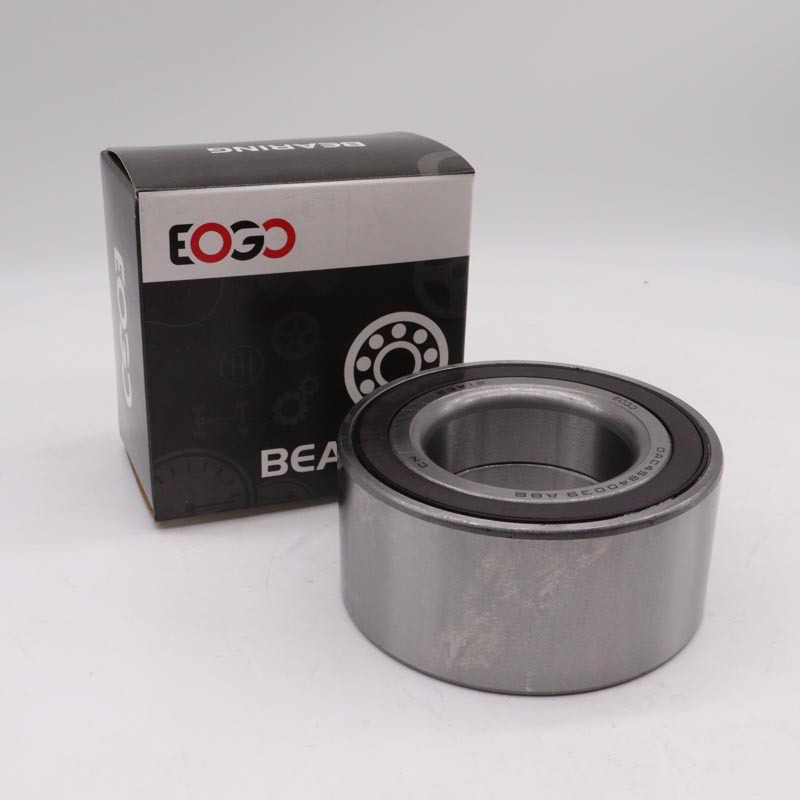

Hub bearing front DAC45840039 ABS Wheel Hub Bearings 45x84x39mm with 45BWD16CA103 Air Compressor Rail Spare Parts for metallurgy
Classification :
PRODUCT DESCRIPTION
Automotive Wheel Bearings
The automotive wheel bearings are double-row angular contact ball bearings incorporating an integral outer ring and two separable inner rings and double-row tapered roller bearings with back-to-back duplex outer rings,these bearings are available either with seals or without seals.WE can provide completed auto wheel bearing model types with 11 years experience.
Advantages:
- No need for pre-load adjustment at assembly.
- compactness and high performance of wheel axles
- no need for grease replenishment at assembly
- high productivity,large load rating
- Appropriate internal axial clearance,superion sealing
|
Main specifications |
|
|
Bearing number |
DAC45840039 ABS |
|
Category |
Automotive Wheel bearings Angular Contact Ball Bearing Double Row |
|
Product Properties |
|
|
Bore |
Cylindrical Bore |
|
Seal |
Rubber Seal on Two Sides |
|
Cage Type |
S - Steel or Standard Cage |
|
External Modification |
No External Modification |
|
Radial Internal Play |
Cn Normal Internal Play |
|
Precision |
Standard Precision |
|
Lubrication |
Standard Lubrication |
|
Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
|
Split Innering / Outerring |
Split innerring |
|
Weight and Dimensions |
|
|
Inner diameter |
45mm |
|
Outside diameter |
84mm |
|
Width |
39mm |
|
Weight |
0.92kg |
Usually what we call wheel bearings refers to the first generation of wheel hub bearings,they are double-row angular contact ball bearings and double row tapered roller bearings with back-to-back duplex outer rings.
Compared with ordinary single row deep groove ball bearings and single row tapered roller bearings, the first generation wheel hub bearings have many advantages:
1.Easier and more reliable preload setting
2.Shorter distance between effective load centers
3.Easy mounting process
4.No spacer adjustment required
5.No grease packing required
6.No operations required to press seals into hub units
Wheel bearings have became one of those components that are now so reliable, We often think of the job of a wheel bearing to be that of just rotating until it wears out (About 50 million times over the course of 100,000km) but we should remember they have to deal with many forces of axial and radial loads such as acceleration, braking, cornering and gravity to name a few. Not to mention the environmental factors such as brake dust, heat and road grime.
Therefore, we must provide high-quality automotive wheel bearings, and replace and maintain these bearings in a timely manner.
