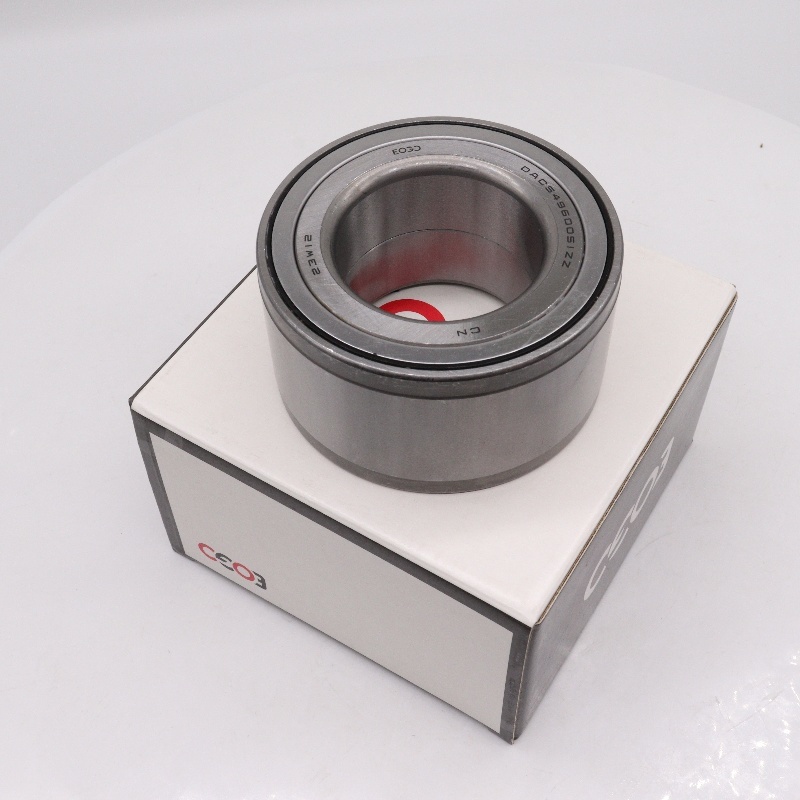

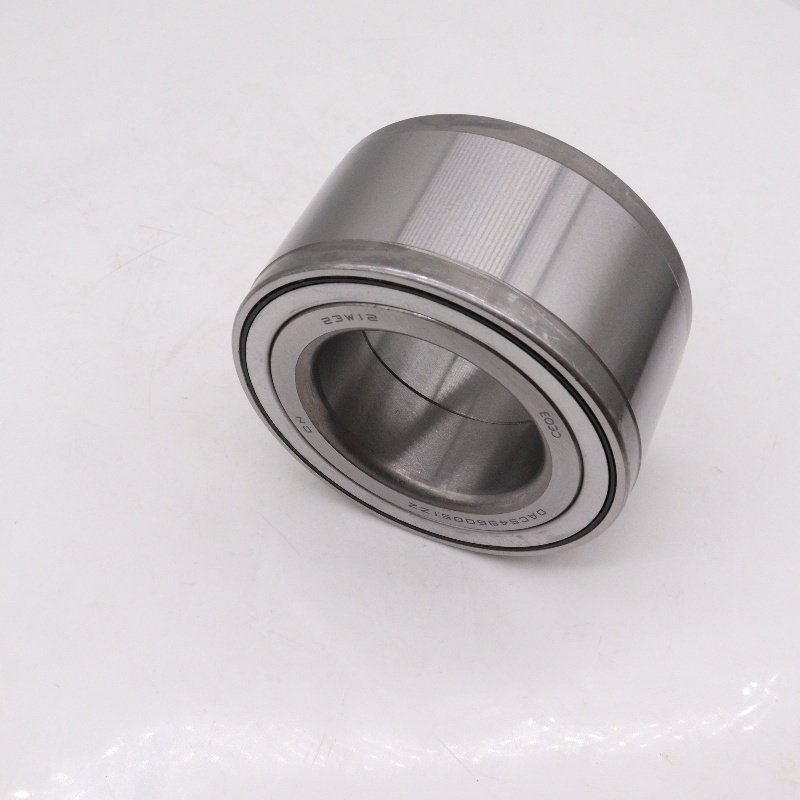

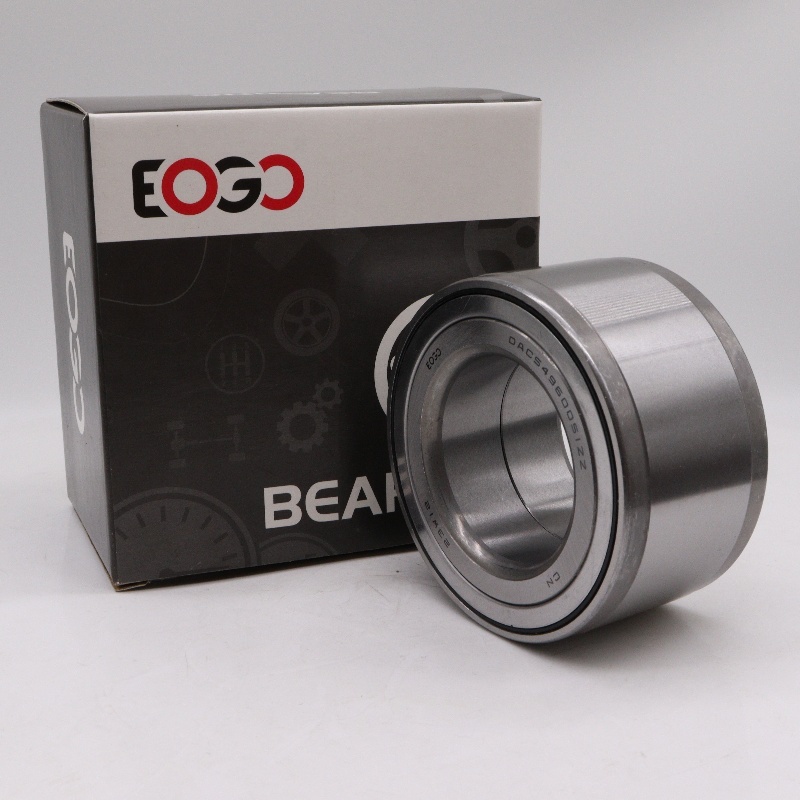

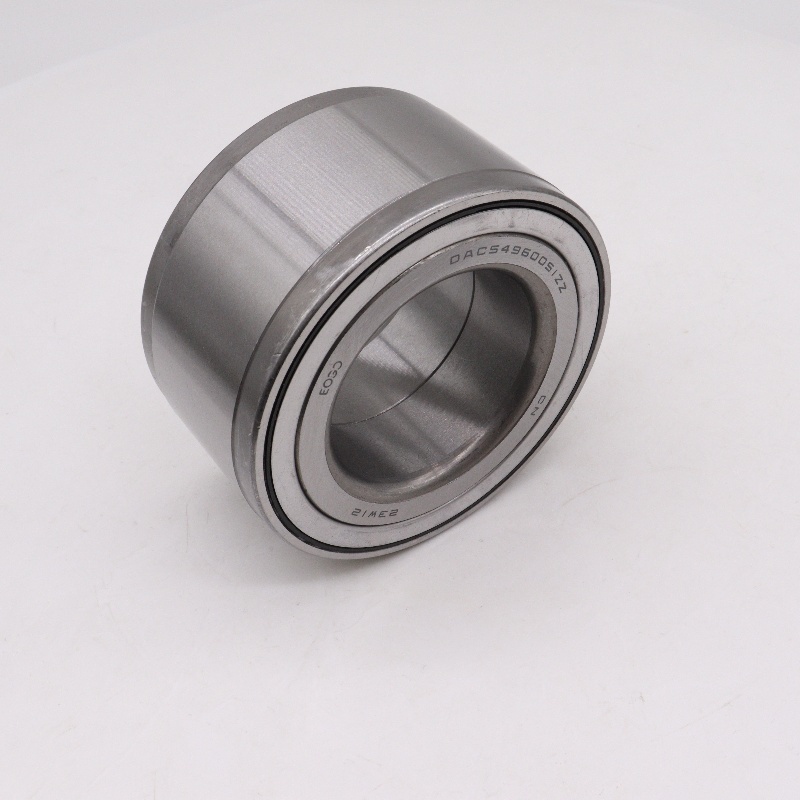

Front Wheel Bearing Repair Kit 54X96X37mm DAC54960051ZZ with wheel hub bearing DAC42820036ZZ for crushers

Classification :

Wheel bearings

+8615863192579

Whatsapp

Eogo@eogo-bearing.com

E-mail

RELATED PRODUCTS
ONLINE MESSAGE

What are the wheel bearings?

Usually what we call wheel bearings refers to the first generation of wheel hub bearings,they are double-row angular contact ball bearings and double row tapered roller bearings with back-to-back duplex outer rings.

Compared with ordinary single row deep groove ball bearings and single row tapered roller bearings, the first generation wheel hub bearings have many advantages:

1.Easier and more reliable preload setting

2.Shorter distance between effective load centers

3.Easy mounting process

4.No spacer adjustment required

Main specifications

Bearing number

 DAC54960051ZZ

Category

Automotive Wheel bearings Angular Contact Ball Bearing Double Row

Product Properties

Bore

Cylindrical Bore

Seal

Rubber Seal on Two Sides

Cage Type

S - Steel or Standard Cage

External Modification

No External Modification

Radial Internal Play

Cn Normal Internal Play

Precision

Standard Precision

Lubrication

Standard Lubrication

Heat Stabilization

No Heat Stabilization - Temperatures up to 120 °C

Split Innering / Outerring

Split innerring

Weight and Dimensions

Inner diameter

54mm

Outside diameter

96mm

Width

37mm

Weight

0.9kg


Usually what we call wheel bearings refers to the first generation of wheel hub bearings,they are double-row angular contact ball bearings and double row tapered roller bearings with back-to-back duplex outer rings.
Compared with ordinary single row deep groove ball bearings and single row tapered roller bearings, the first generation wheel hub bearings have many advantages:

1.Easier and more reliable preload setting
2.Shorter distance between effective load centers
3.Easy mounting process
4.No spacer adjustment required
5.No grease packing required
6.No operations required to press seals into hub units


Wheel bearings have became one of those components that are now so reliable, We often think of the job of a wheel bearing to be that of just rotating until it wears out (About 50 million times over the course of 100,000km) but we should remember they have to deal with many forces of axial and radial loads such as acceleration, braking, cornering and gravity to name a few. Not to mention the environmental factors such as brake dust, heat and road grime.
Therefore, we must provide high-quality automotive wheel bearings, and replace and maintain these bearings in a timely manner.
